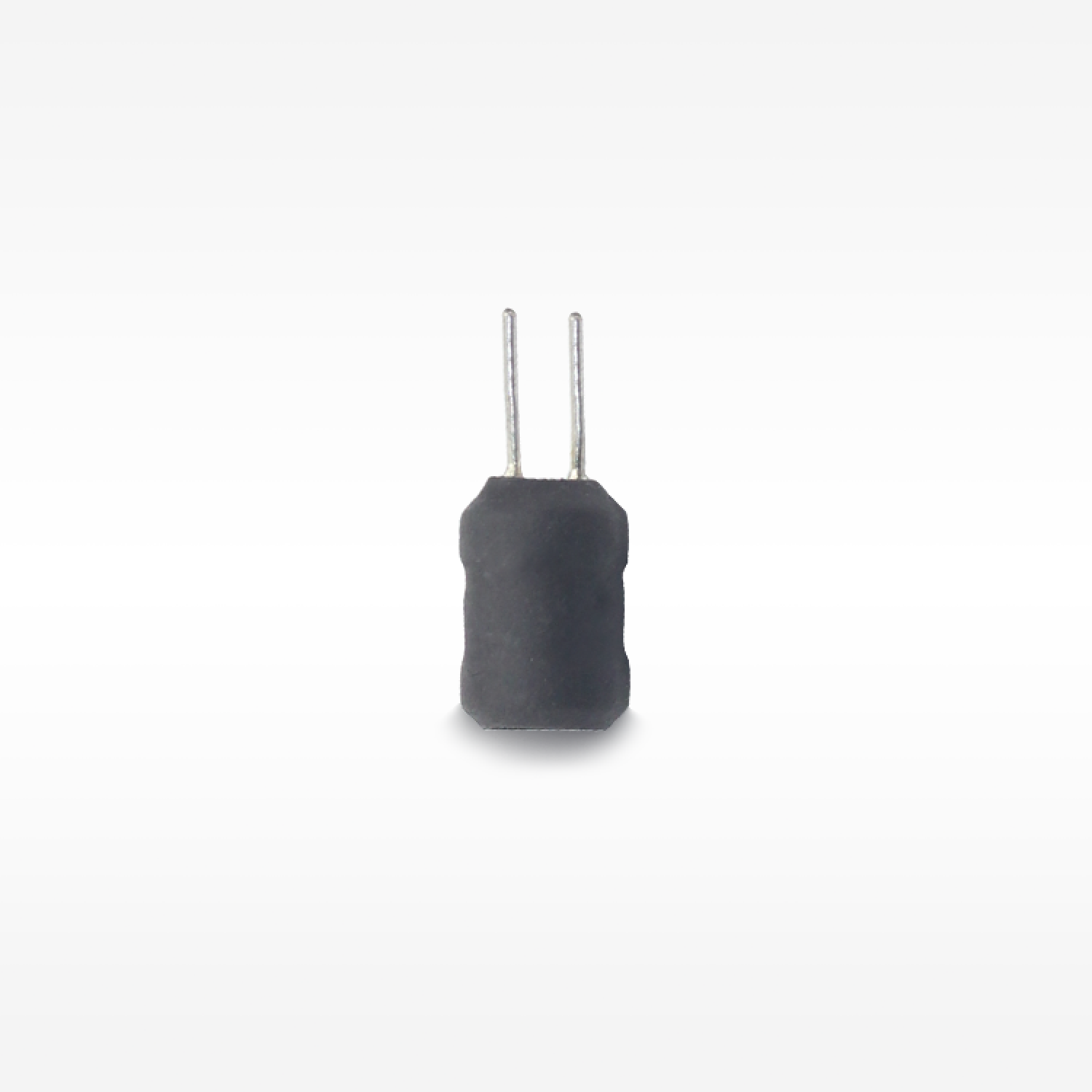

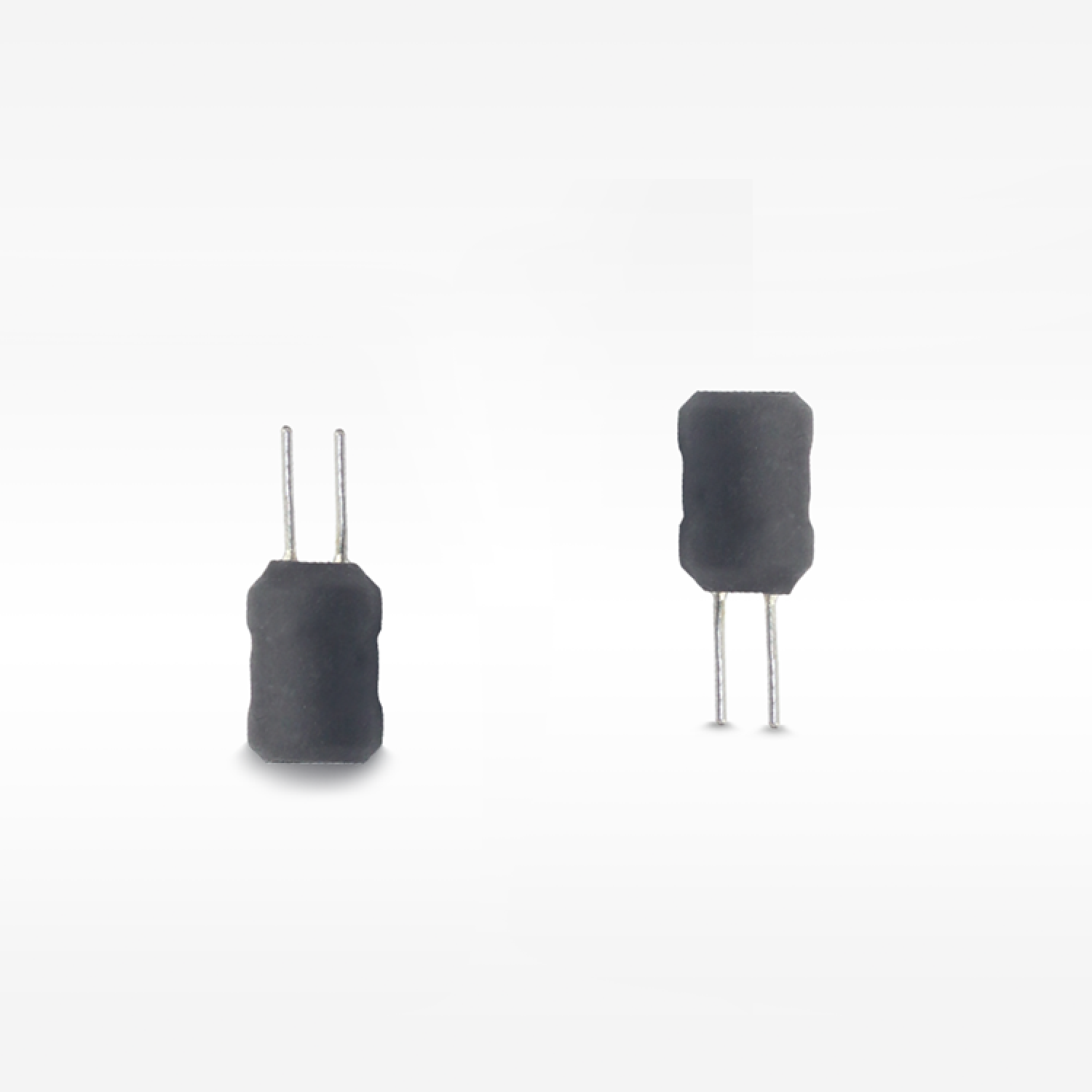

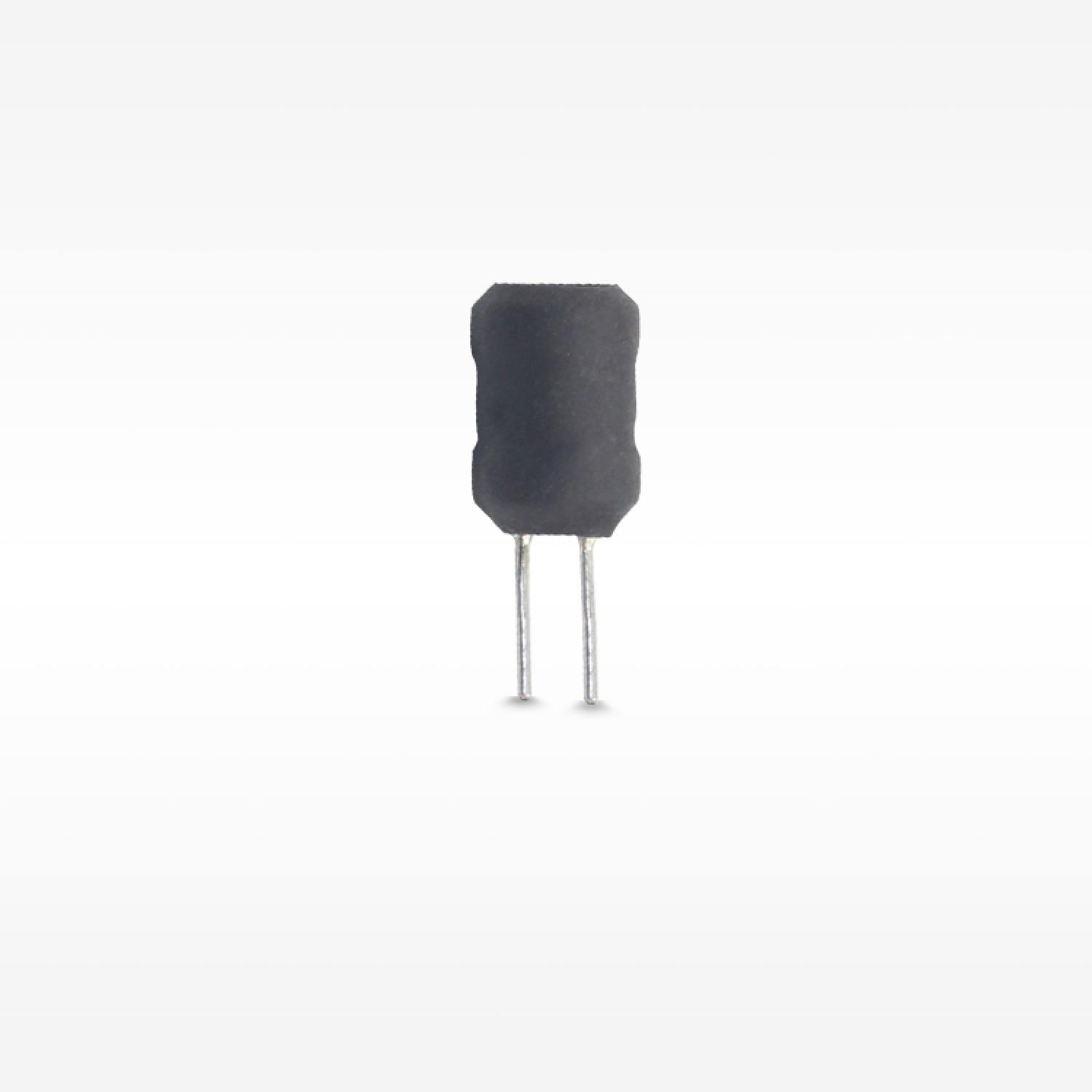

PK0608

◾ High reliability, high consistency inductance.
◾ Lead free product, RoHS compliant.
◾ Core is encapsulated by UL heat shrink tube to provide excellent mechanic and environmental protection.
◾ Widely used in power supply, DC-DC converter,computer and periph.
◾ Operating temperature : -40℃ ～ +125℃(Including coil’s temperature rise).

Introduction

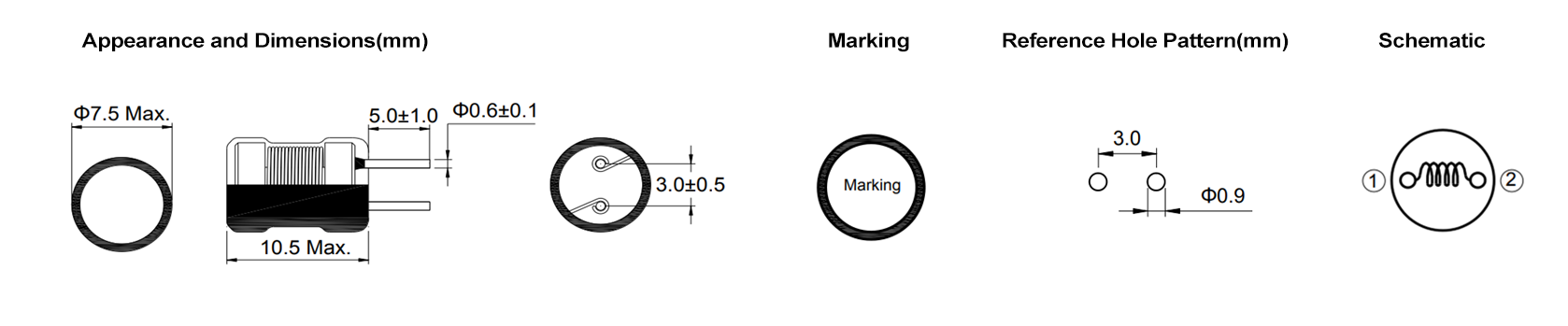

Electrical Characteristics

Part No.	Inductance (μH)	DCR Typ (mΩ)	Isat (A)	Irms (A)	Working (℃)	Length (mm)	Width (mm)	Height (mm)	Mounting	Shield	Core material	AEC Grade
PK0608-100K	10	28.3	2.4	3.54	-40~125	7.50	7.50	10.50	DIP	N	Ferrite	N
PK0608-120K	12	31.5	2.1	3.35	-40~125	7.50	7.50	10.50	DIP	N	Ferrite	N
PK0608-150K	15	41	1.95	2.94	-40~125	7.50	7.50	10.50	DIP	N	Ferrite	N
PK0608-180K	18	48	1.8	2.72	-40~125	7.50	7.50	10.50	DIP	N	Ferrite	N
PK0608-220K	22	51.8	1.55	2.61	-40~125	7.50	7.50	10.50	DIP	N	Ferrite	N
PK0608-270K	27	68	1.45	2.28	-40~125	7.50	7.50	10.50	DIP	N	Ferrite	N
PK0608-330K	33	81.9	1.27	2.08	-40~125	7.50	7.50	10.50	DIP	N	Ferrite	N
PK0608-390K	39	101	1.22	1.87	-40~125	7.50	7.50	10.50	DIP	N	Ferrite	N
PK0608-470K	47	114	1.1	1.76	-40~125	7.50	7.50	10.50	DIP	N	Ferrite	N
PK0608-560K	56	134	1.02	1.62	-40~125	7.50	7.50	10.50	DIP	N	Ferrite	N
PK0608-680K	68	163	0.96	1.47	-40~125	7.50	7.50	10.50	DIP	N	Ferrite	N
PK0608-820K	82	239	0.86	1.22	-40~125	7.50	7.50	10.50	DIP	N	Ferrite	N
PK0608-101K	100	263	0.73	1.16	-40~125	7.50	7.50	10.50	DIP	N	Ferrite	N
PK0608-121K	120	298	0.67	1.09	-40~125	7.50	7.50	10.50	DIP	N	Ferrite	N
PK0608-151K	150	386	0.59	0.98	-40~125	7.50	7.50	10.50	DIP	N	Ferrite	N
PK0608-181K	180	443	0.55	0.89	-40~125	7.50	7.50	10.50	DIP	N	Ferrite	N
PK0608-221K	220	530	0.5	0.82	-40~125	7.50	7.50	10.50	DIP	N	Ferrite	N
PK0608-271K	270	653	0.46	0.74	-40~125	7.50	7.50	10.50	DIP	N	Ferrite	N
PK0608-331K	330	789	0.42	0.67	-40~125	7.50	7.50	10.50	DIP	N	Ferrite	N
PK0608-391K	390	981	0.36	0.6	-40~125	7.50	7.50	10.50	DIP	N	Ferrite	N
PK0608-471K	470	1104	0.34	0.55	-40~125	7.50	7.50	10.50	DIP	N	Ferrite	N
PK0608-561K	560	1356	0.32	0.5	-40~125	7.50	7.50	10.50	DIP	N	Ferrite	N
PK0608-681K	680	1561	0.29	0.46	-40~125	7.50	7.50	10.50	DIP	N	Ferrite	N
PK0608-821K	820	1881	0.27	0.42	-40~125	7.50	7.50	10.50	DIP	N	Ferrite	N
PK0608-102K	1000	2404	0.26	0.38	-40~125	7.50	7.50	10.50	DIP	N	Ferrite	N

【Sample Apply】

Application

◾ Buck converter
◾ Network communication equipment
◾ Power amplifiers
◾ Power supplies

Notes

◾ All data is tested based on 25℃ ambient temperature.
◾ Inductance measure condition at 100kHz, 0.5V.
◾ Saturation current：the actual value of DC current when the inductance decrease 30% of its initial value.
◾ Temperature rise current：the actual value of DC current when the temperature rise is ΔT50℃(Ta=25℃).
◾ Special remind：Circuit design, component placement, PCB size and thickness, cooling system and etc.
◾ All will affect the product temperature. Please verify the product temperature in the final application.

Save

◾ Product in packing storage condition : temperature 5～40℃, RH≤70%.
◾ If taking out for use, the remaining products should be sealed in plastic bags and preserved in accordance with the above conditions, to avoid oxidation of terminals (electrodes), affecting soldering status.
◾ A storage of Codaca Electronic products for longer than 12 months is not recommended within other effects, the terminals may suffer degradation, resulting in bad solderability. Therefore, all products shall be used within the period of 12 months based on the day of shipment.
◾ Do not keep products in unsuitable storage conditions, such as areas susceptible to high temperatures, high humidity, dust or corrosion.
◾ Always handle products with care.
◾ Don't touch electrodes directly with bare hands as oil secretions may inhibit soldering.
◾ Always ensure optimum conditions for soldering.

Datasheet Download:PK0608.pdf
